LiviControl 16E

Firmware Update

Updated February 23, 2026

Updating firmware on the LC16E uses a USB mass-storage approach — no special software needed. Download the firmware file, put the controller into update mode, and drag the file over.

Download Firmware

LiviControl16E.bin
Latest firmware for LC16E
Download →

Steps

  1. Download the firmware file from the section above.

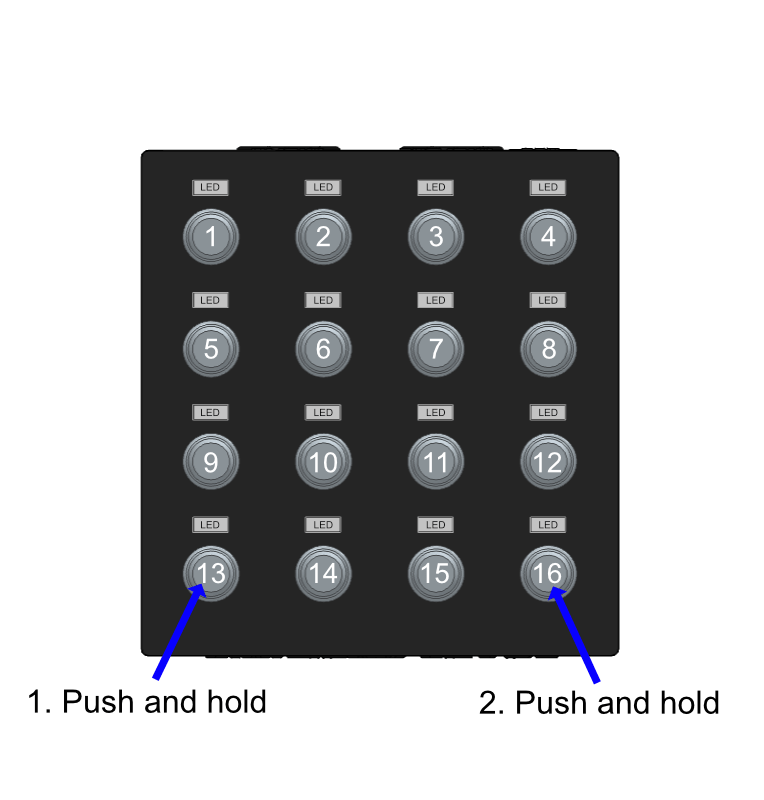

  2. Hold down Button 13, then hold down Button 16.
  3. All LEDs blink, then after ~5 seconds they stay continuously lit — the controller is in update mode.
  4. A USB drive mounts on your connected PC.
  5. Drag the downloaded firmware .uf2 file onto the USB drive.
  6. Wait for the transfer to complete — the controller reboots automatically on the new firmware.

⚠ Important

Do not unplug the USB cable while the firmware file is transferring. Wait for the controller to reboot on its own.

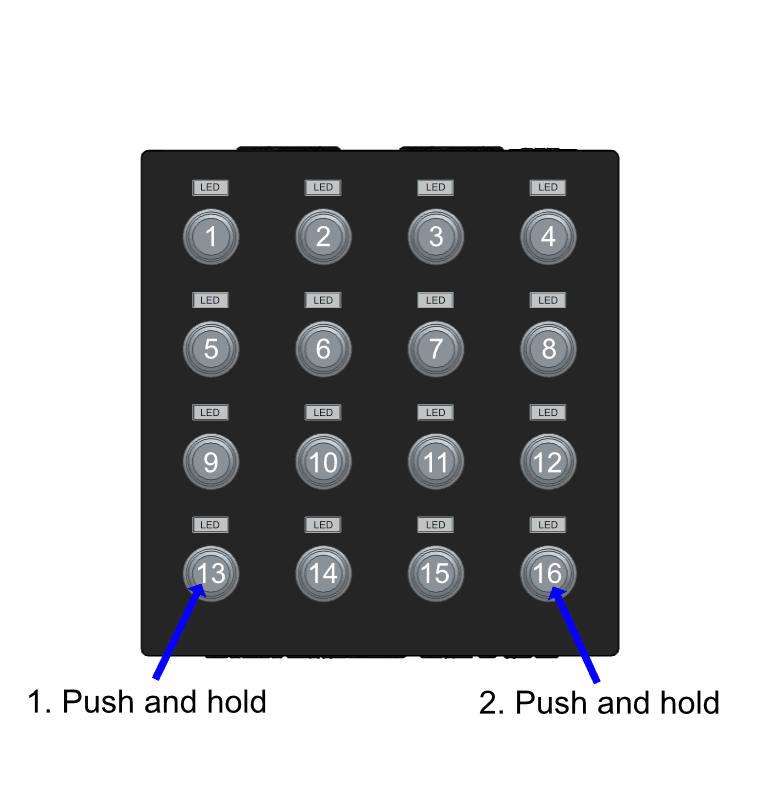

LC16E firmware update button positions — buttons 13 and 16 highlighted

Buttons 13 and 16 trigger firmware update mode
